Snap-fit parametric box

What it is

A tray-style box with a press-on lid. The box has small wedge protrusions on its long walls; the lid’s downward skirt has matching dimples cut into its inner face. With the lid closed (lidLifted = 0), the wedges sit inside the dimples. With the lid lifted, the parts separate so the snap features are visible.

Why visual feedback matters

Snap-fit design is all tolerance. clearance between the box outer wall and the lid skirt inner wall determines whether the lid jams, snaps cleanly, or rattles. Wedge depth and dimple depth set the engagement force. None of this is intuitable from numbers in a table — render-and-twiddle is the design loop.

Screenshots

Exploded view shows the wedge on the box’s long wall (bump near the top of the box’s front face) and the matching dimple on the inside of the lid’s skirt.

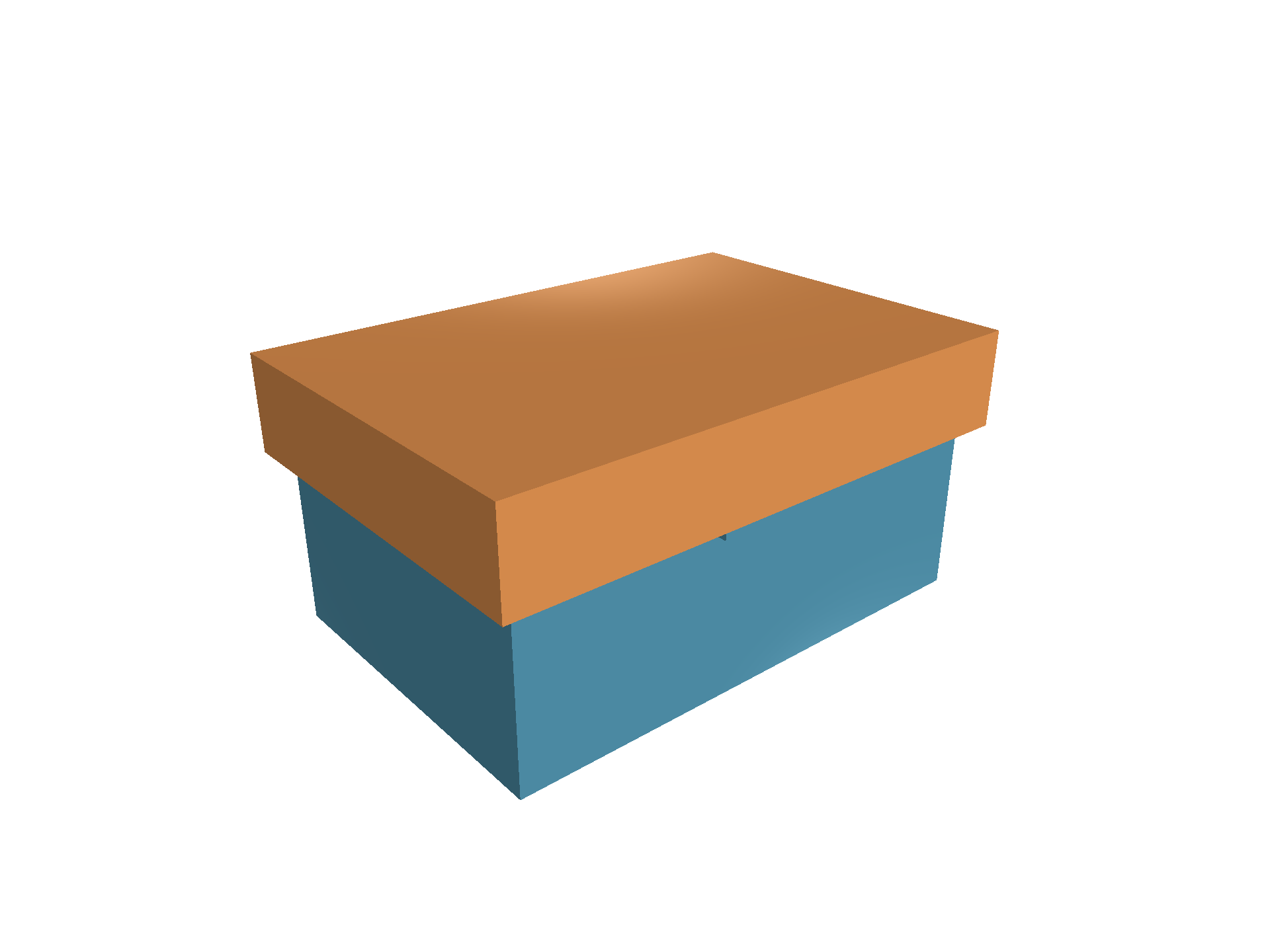

Snap box closed
Closed
Snap box exploded
Exploded (lid lifted)

Parameters

Parameters 12
NameDefaultDescription
width — mm Outer box width.
depth — mm Outer box depth.
height — mm Outer box height.
wallThickness — mm Box wall thickness.
floorThickness — mm Floor thickness.
lidThickness — mm Lid top thickness.
lidSkirtHeight — mm How far down the lid skirt extends.
snapZ — mm Wedge height above floor.
snapWidth — mm Wedge along-wall width.
snapDepth — mm Wedge protrusion depth.
clearance — mm Radial gap between box outer wall and lid skirt.
lidLifted — mm Z offset for the exploded view (0 = closed).
