Gyroid lattice cube

What it is

A cube filled with the triply-periodic minimal surface: sin(x)cos(y) + sin(y)cos(z) + sin(z)cos(x) = 0, thickened to a finite shell and clipped to a cube. Marching cubes generates the mesh from the implicit field; JSCAD’s polyhedron consumes it.

Why visual feedback matters

Implicit-surface design is invisible until you render it. Wall thickness, sampling resolution, and the relationship between cell size and bounding cube are all adjusted by looking. The slice tool reveals the gyroid’s famous interlocking S-curve cross-section — a section you can’t intuit from the formula alone. The first attempt used |f|-t as the iso-function, which has a kink at f=0 that breaks marching cubes; switching to f² - t² (same iso-surface, smooth field) immediately produced a coherent watertight mesh.

Screenshots

Gyroid iso
Iso

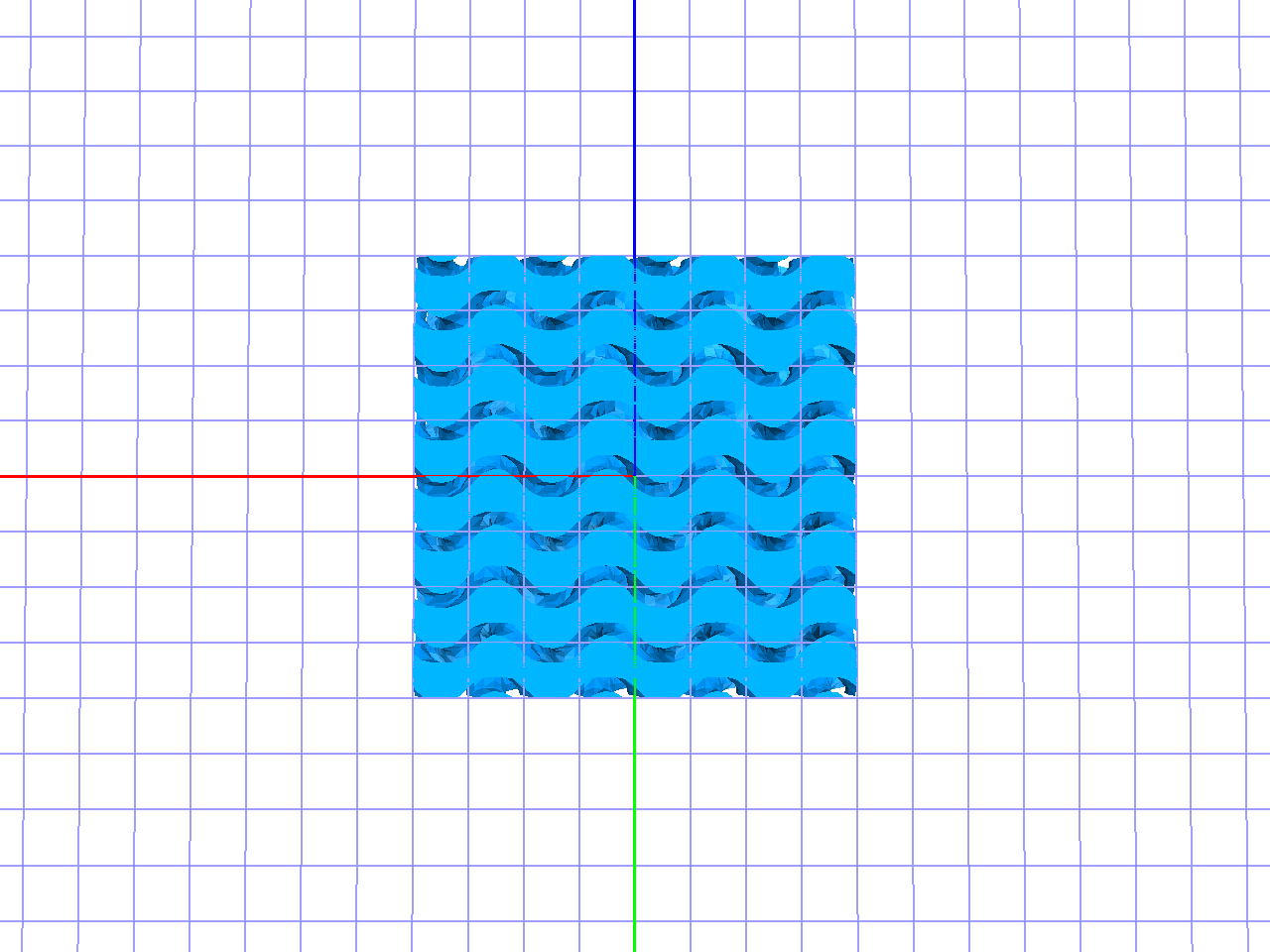

Slice Z
Slice (z)

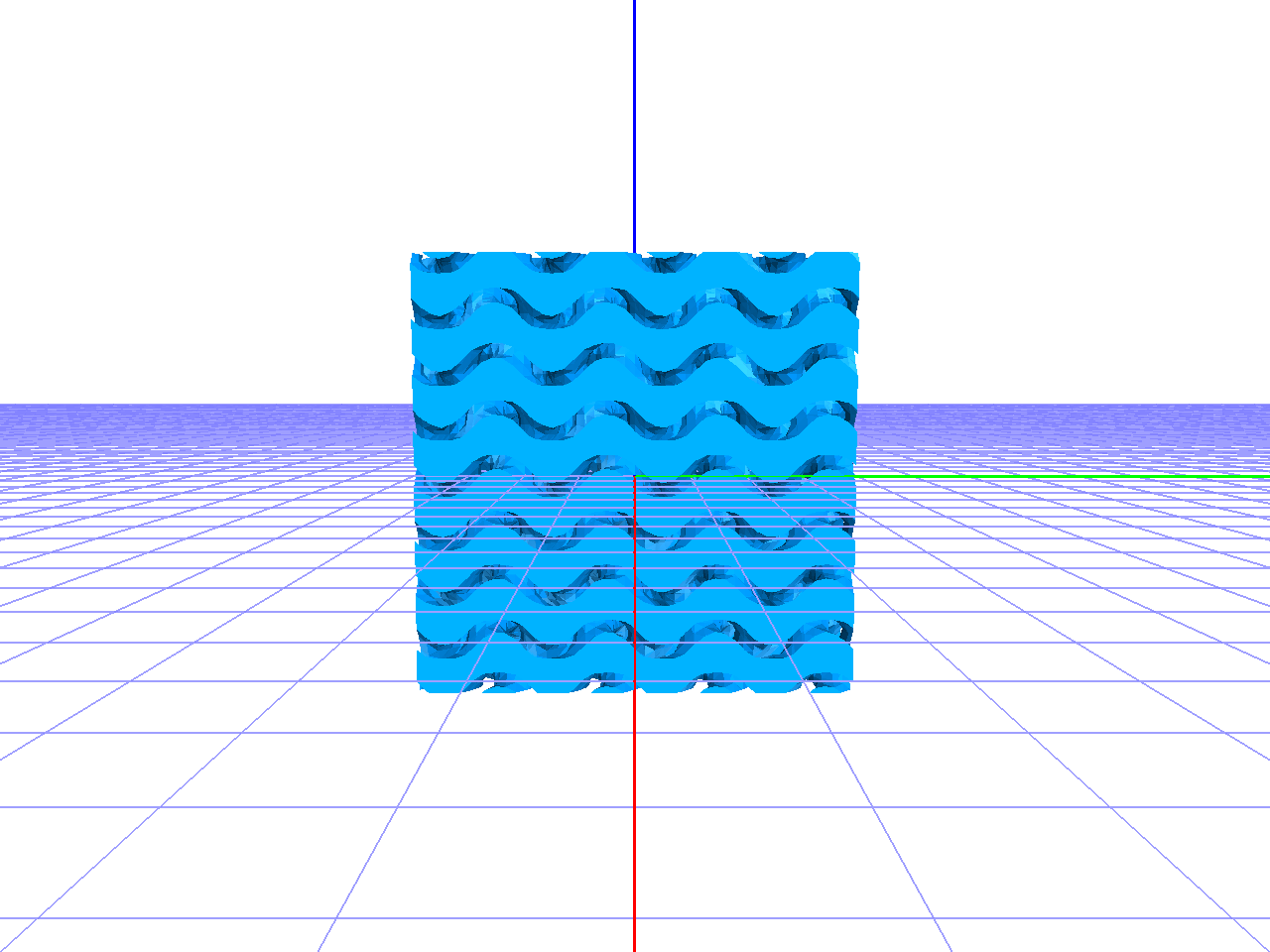

Slice X
Slice (x)

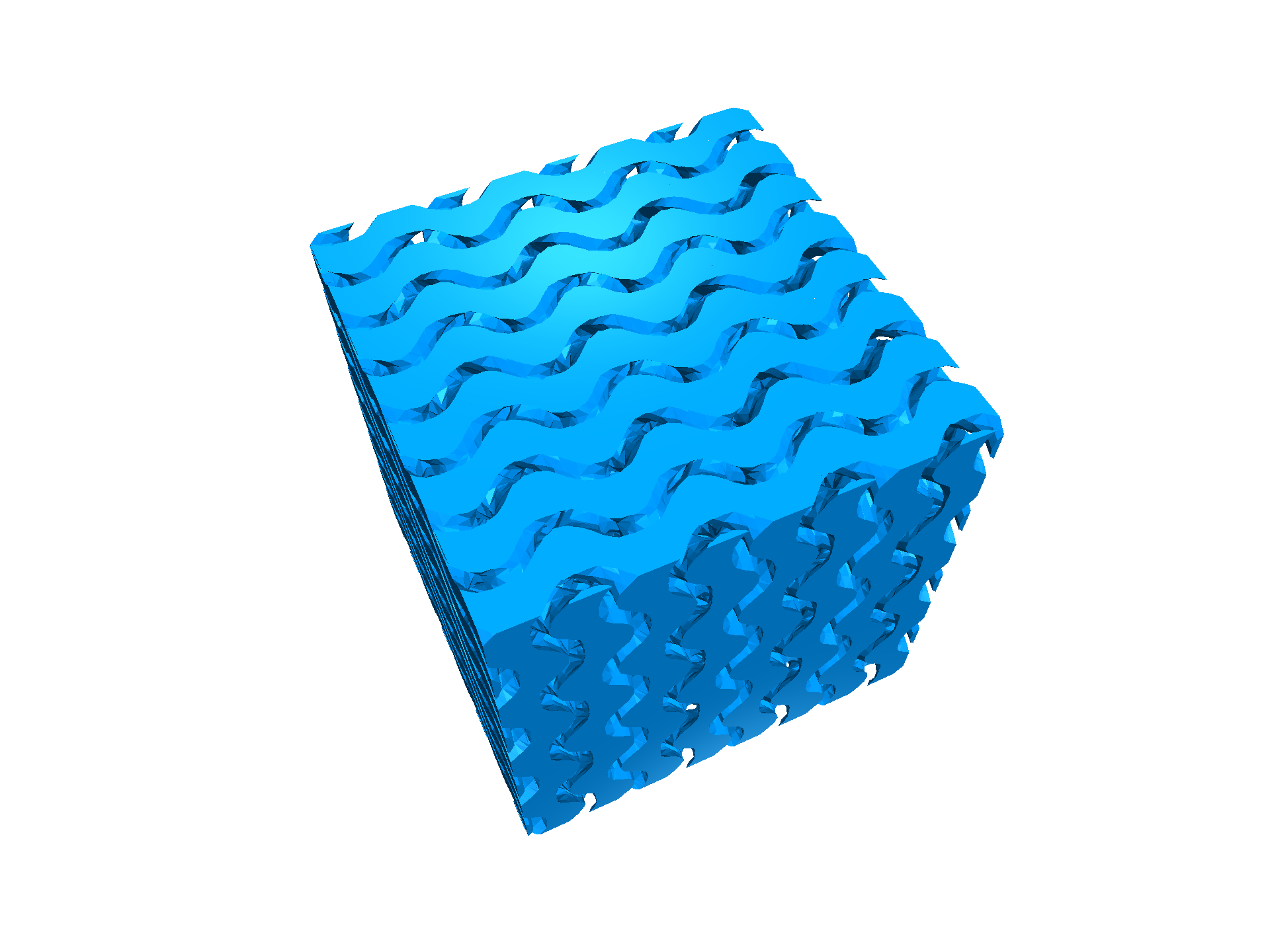

Oblique
Oblique

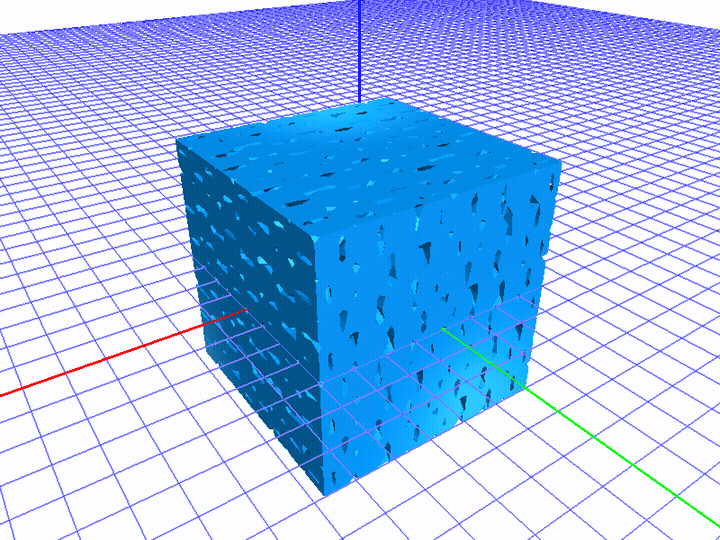

Iteration: low resolution → thick walls → final tuning at moderate threshold and high resolution.

Gyroid iteration GIF

Parameters

Parameters 4
NameDefaultDescription
cellSize 10 mm Gyroid period.
wallThreshold 0.6 Solid where `|f(x,y,z)| < t`. Larger = thicker walls.
cubeSize 40 mm Outer cube size.
resolution 48 Marching-cubes grid per axis. Higher = smoother, slower.
